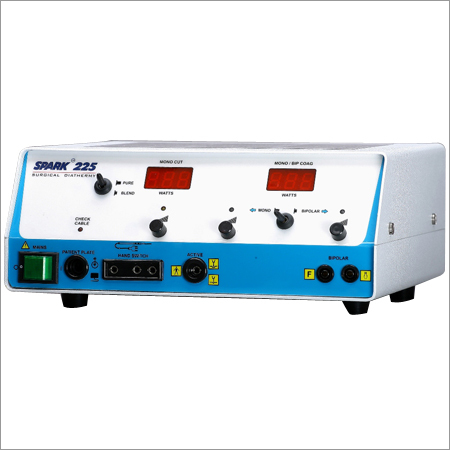

Digital Surgical Diathermy Unit

Product Description

Digital Surgical Diathermy Unit

Backed with great experience, we are reckoned as one of the reputed manufacturers and exporters of Digital Surgical Diathermy Unit. These machines are digital underwater cutting diathermy, which is used for Laparoscopy, TURP and general surgical procedures. Our offered Digital Surgical Diathermy Unit is well acknowledged in the market for its salient features such as light weight, compact & highly portable unit and unmatched performance. We are offering these diathermy machines to our clients at cost effective prices.

Further Details:

Standard features include handswitch & silicone rubber patient plate. A dedicated TURP socket ensures better loop life & smooth output for underwater cutting applications. The spray mode in monopolar coag option gives an added advantage. This unit delivers superior coagulation thanks to its special design

TECHNICAL SPECIFICATIONS

•  HF Power display  : 3 digit LED display
• HF Power control   : Digital control in small increments

 MAXIMUM HF OUTPUT POWER SETTINGS

• Monopolar cut  : 300 watts into 500 ohms
• Blend  : Single step control
• Rated frequency   : 1 MHz
• Monopolar Coagulation  : 100 watts into 500 ohms
• Spray   : 100 watts into 500 ohms

 BIPOLAR

• Bipolar Coagulation : 100 watts into 100 ohms
• Rated frequency    : 1 MHz

 HAND SWITCHED OUTPUT

Monopolar outputs same as given above

 LINE VOLTAGE FLUCTUATION COMPATIBILITY

• Working range  : Steady HF output for line voltage from 170 to 250 volts, 50 Hz
• Maximum range  : Steady HF output for line voltage from 200 to 250 volts, 50 Hz

 PHYSICAL DIMENSIONS

• 350 mm x 325 mm x 135 .mm
• Weight: 8.5 Kgs

 SALIENT FEATURES

   STANDARD ACCESSORIES

• Colour coded double pedal footswitch with cable and connector
• Silicone rubber patient plate with detachable connection cable and rubber strap with punched holes
•  Reusable Active electrode handle with set of 4 electrodes & silicone rubber insulated cable
• Reusable insulated bipolar forceps with silicone rubber insulated cable
• Reusable Handswitch surgical pencil with one blade electrode
